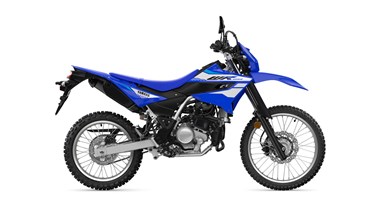

Yamaha WR125R (2026)
TECHNICAL DATA
| Engine and Drive Train | |
|---|---|
| Engine type | In line |
| Cylinders | 1 |
| Strokes | 4-Stroke |
| Valves per cylinder | 4 |
| Valves | OHC |
| Cooling | liquid |
| Displacement | 125 ccm |
| Bore | 52 mm |
| Stroke | 58,7 mm |
| Engine power | 14,5 HP |
| Rpm at Max. Power | 10000 rpm |
| Torque | 11,3 Nm |
| Rpm at Torque | 6500 rpm |
| Compression Ratio | 11,2 |
| Fuel system | Injection |
| Starter | Electric |
| Clutch Type | Multiplate in oil-bath |
| Ignition | Transistor |
| Transmission | Chain |
| Transmission Type | Gearshift |
| Number of gears | 6 |
| Chassis | |
| Frame | Steel |
| Frame type | Single cradle |
| Rake | 28,2 degree |
| Trail | 117 mm |
| Suspension Front | |
| Front suspension | Upside-Down telescopic fork |
| Brand | Kayaba |
| Diameter | 41 mm |
| Travel | 215 mm |
| Suspension Rear | |
| Suspension | Swing arm |
| Material | Aluminium |
| Shock absorber | Monoshock |
| Shock mount | Deflection |
| Brand | Kayaba |
| Travel | 187 mm |
| Brakes Front | |
| Type | Single disk |
| Diameter | 267 mm |
| Piston | Double piston |
| Actuation | Hydraulic |
| Brakes Rear | |
| Type | Disc |
| Diameter | 220 mm |
| Piston | Single piston |
| Assistance Systems | |
| Advanced Rider Assistance Systems | ABS, Engine management, Variable valve timing |
| Dimensions and Weights | |
| Front tyre diameter | 21 inch |
| Rear tyre diameter | 18 inch |
| Length | 2160 mm |
| Width | 840 mm |
| Height | 1195 mm |
| Wheelbase | 1430 mm |
| Seat Height | 875 mm |
| Ground clearance | 240 mm |
| Kerb Weight (with ABS) | 138 kg |
| Fuel Tank Capacity | 8,1 l |
| Range | 320 km |
| Combined CO2 emissions | 55 g/km |
| Combined fuel consumption | 2,3 l/100km |
| Equipment | |
| Equipment | Connectivity, LED-Headlights, Lighting |
All information without guarantee. Typing errors and mistakes excepted.
