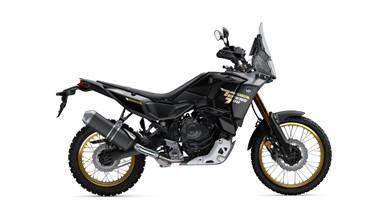

Yamaha Tenere 700 World Raid (2026)
TECHNICAL DATA
| Engine and Drive Train | |
|---|---|
| Engine type | In line crankpin offset |
| Cylinders | 2 |
| Strokes | 4-Stroke |
| Valves per cylinder | 4 |
| Valves | DOHC |
| Cooling | liquid |
| Displacement | 689 ccm |
| Bore | 80 mm |
| Stroke | 68,6 mm |
| Engine power | 73 HP |
| Rpm at Max. Power | 9000 rpm |
| Torque | 68 Nm |
| Rpm at Torque | 6500 rpm |
| Compression Ratio | 11,5 |
| Fuel system | Injection |
| Starter | Electric |
| Clutch Type | Multiplate in oil-bath |
| Transmission | Chain |
| Transmission Type | Gearshift |
| Number of gears | 6 |
| Can be restricted for A2 licence | yes |
| Chassis | |
| Frame type | Double cradle, Central tube |
| Rake | 27 degree |
| Trail | 105 mm |
| Suspension Front | |
| Front suspension | Upside-Down telescopic fork |
| Brand | Kayaba |
| Diameter | 46 mm |
| Travel | 230 mm |
| Adjustment | Compression, Preload, Rebound |
| Suspension Rear | |
| Suspension | Swing arm |
| Shock absorber | Monoshock |
| Travel | 220 mm |
| Adjustment | Compression, Preload, Rebound |
| Brakes Front | |
| Type | Double disk |
| Diameter | 282 mm |
| Actuation | Hydraulic |
| Brakes Rear | |
| Type | Disc |
| Diameter | 245 mm |
| Assistance Systems | |
| Advanced Rider Assistance Systems | ABS, Anti-slipping control, Riding modes, Cornering ABS, Ride by Wire, Cruise control, Traction control, Modern electronics, Slide Control, IMU (Inertial Measurement Unit), Cornering traction control |
| Dimensions and Weights | |
| Front tyre width | 90 mm |
| Front tyre height | 90 % |
| Front tyre diameter | 21 inch |
| Rear tyre width | 150 mm |
| Rear tyre height | 70 % |
| Rear tyre diameter | 18 inch |
| Length | 2370 mm |
| Width | 935 mm |
| Height | 1495 mm |
| Wheelbase | 1595 mm |
| Seat Height | 890 mm |
| Ground clearance | 240 mm |
| Kerb Weight (with ABS) | 220 kg |
| Fuel Tank Capacity | 23 l |
| Range | 534 km |
| Combined CO2 emissions | 100 g/km |
| Combined fuel consumption | 4,3 l/100km |
| Equipment | |
| Equipment | Connectivity, LED daytime running lights, LED-Headlights, TFT display, Modern electronics, Lighting |
All information without guarantee. Typing errors and mistakes excepted.
