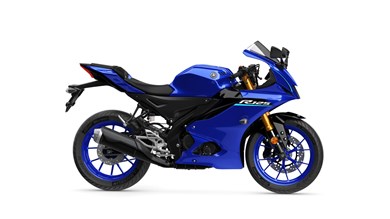

Yamaha R125 (2026)
TECHNICAL DATA
| Engine and Drive Train | |
|---|---|
| Cylinders | 1 |
| Strokes | 4-Stroke |
| Valves per cylinder | 4 |
| Valves | OHC |
| Cooling | liquid |
| Displacement | 125 ccm |
| Bore | 52 mm |
| Stroke | 58,7 mm |
| Engine power | 15 HP |
| Rpm at Max. Power | 10000 rpm |
| Torque | 11,5 Nm |
| Rpm at Torque | 8000 rpm |
| Compression Ratio | 11,2 |
| Fuel system | Injection |
| Starter | Electric |
| Clutch Type | Multiplate in oil-bath |
| Ignition | Transistor |
| Transmission | Chain |
| Transmission Type | Gearshift |
| Number of gears | 6 |
| Chassis | |
| Frame | Steel |
| Frame type | Deltabox |
| Rake | 26 degree |
| Trail | 95 mm |
| Suspension Front | |
| Front suspension | Upside-Down telescopic fork |
| Diameter | 41 mm |
| Travel | 130 mm |
| Suspension Rear | |
| Suspension | Swing arm |
| Shock absorber | Monoshock |
| Travel | 110 mm |
| Brakes Front | |
| Type | Single disk |
| Diameter | 292 mm |
| Brakes Rear | |
| Type | Disc |
| Diameter | 220 mm |
| Assistance Systems | |
| Advanced Rider Assistance Systems | ABS, Traction control |
| Dimensions and Weights | |
| Front tyre width | 100 mm |
| Front tyre height | 80 % |
| Front tyre diameter | 17 inch |
| Rear tyre width | 140 mm |
| Rear tyre height | 70 % |
| Rear tyre diameter | 17 inch |
| Length | 1990 mm |
| Width | 715 mm |
| Height | 1145 mm |
| Wheelbase | 1325 mm |
| Seat Height | 820 mm |
| Ground clearance | 160 mm |
| Kerb Weight (with ABS) | 141 kg |
| Fuel Tank Capacity | 11 l |
| License compliancy | A1 |
| Range | 523 km |
| Euro Norm | Euro 5+ |
| Combined CO2 emissions | 47 g/km |
| Combined fuel consumption | 2,1 l/100km |
| Equipment | |
| Equipment | Connectivity, LED daytime running lights, LED-Headlights, TFT display, Modern electronics, Lighting |
All information without guarantee. Typing errors and mistakes excepted.
