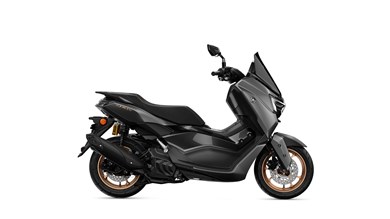

Yamaha NMAX 155 Tech MAX (2026)
Technical Data
| Engine and Drive Train | |
|---|---|
| Cylinders | 1 |
| Strokes | 4-Stroke |
| Valves per cylinder | 4 |
| Valves | OHC |
| Cooling | liquid |
| Displacement | 155 ccm |
| Bore | 58 mm |
| Stroke | 58,7 mm |
| Max. Power Output | 15,1 HP |
| Rpm at Max. Power Output | 8000 rpm |
| Max. Torque | 14 Nm |
| Rpm at Max. Torque | 6500 rpm |
| Compression Ratio | 11,6 |
| Fuel system | Injection |
| Starter | Electric |
| Clutch Type | Centrifugal force |
| Ignition | Transistor |
| Final Drive | Belt |
| 2WD | no |
| Transmission Type | Variomatic |
| Chassis | |
| Frame | Steel |
| Frame type | Central tube |
| Suspension Front | |
| Front suspension | Telescopic fork |
| Travel | 100 mm |
| Suspension Rear | |
| Rear suspension | Unit Swing |
| Shock absorber | Dual Shock |
| Travel | 91 mm |
| Brakes Front | |
| Front brake | Single disk |
| Diameter | 230 mm |
| Actuation | Hydraulic |
| Brakes Rear | |
| Rear brake | Disc |
| Diameter | 230 mm |
| Assistance Systems | |
| Assistance systems | ABS |
| Dimensions and Weights | |
| Front tyre width | 110 mm |
| Front tyre height | 70 % |
| Front tyre diameter | 13 inch |
| Rear tyre width | 130 mm |
| Rear tyre height | 70 % |
| Rear tyre diameter | 13 inch |
| Length | 1935 mm |
| Width | 740 mm |
| Height | 1200 mm |
| Wheelbase | 1340 mm |
| Seat Height from | 770 mm |
| Kerb Weight (with ABS) | 135 kg |
| Fuel Tank Capacity | 7,1 l |
| License | A2 |
| Range | 295 km |
| Euro Norm | Euro 5+ |
| combined CO2 emissions | 57 g/km |
| Combined fuel consumption | 2,4 l/100km |
| Equipment | |
| Equipment | Keyless System, LED-Headlights, Start/Stop system, TFT display, USB-C socket, Integrated navigation system |
All information is supplied without guarantee. Errors and clerical errors reserved.
