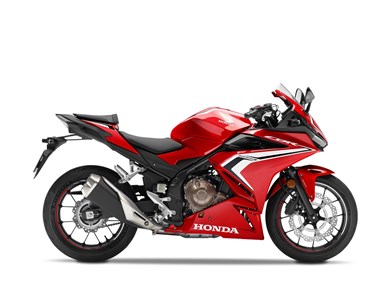

Honda CBR500R (2025)
Technical Data
| Engine and Drive Train | |
|---|---|
| Engine type | In line |
| Cylinders | 2 |
| Strokes | 4-Stroke |
| Valves per cylinder | 4 |
| Valves | DOHC |
| Cooling | liquid |
| Displacement | 471 ccm |
| Bore | 67 mm |
| Stroke | 66,8 mm |
| Max. Power Output | 48 HP |
| Rpm at Max. Power Output | 5500 rpm |
| Max. Torque | 43 Nm |
| Rpm at Max. Torque | 7000 rpm |
| Compression Ratio | 10,7 |
| Starter | Electric |
| Clutch Type | Multiplate in oil-bath |
| Ignition | Digital, Transistor |
| Final Drive | Chain |
| Chassis | |
| Frame | Steel |
| Brakes Front | |
| Front brake | Single disk |
| Piston | Double piston |
| Brakes Rear | |
| Rear brake | Disc |
| Piston | Single piston |
| Dimensions and Weights | |
| Front tyre width | 120 mm |
| Front tyre height | 70 % |
| Front tyre diameter | 17 inch |
| Rear tyre width | 160 mm |
| Rear tyre height | 60 % |
| Rear tyre diameter | 17 inch |
| Length | 2075 mm |
| Width | 740 mm |
| Height | 1145 mm |
| Wheelbase | 1410 mm |
| Seat Height from | 790 mm |
| Kerb Weight (with ABS) | 194 kg |
| Fuel Tank Capacity | 15,7 l |
| License | A2 |
All information is supplied without guarantee. Errors and clerical errors reserved.
